ESP32 Universal IoT Dev Kit - Actuating Mini
ESP32 Universal IoT Dev Kit - Actuating Mini - Image 2
ESP32 Universal IoT Dev Kit - Actuating Mini - Image 3
ESP32 Universal IoT Dev Kit - Actuating Mini - Image 4

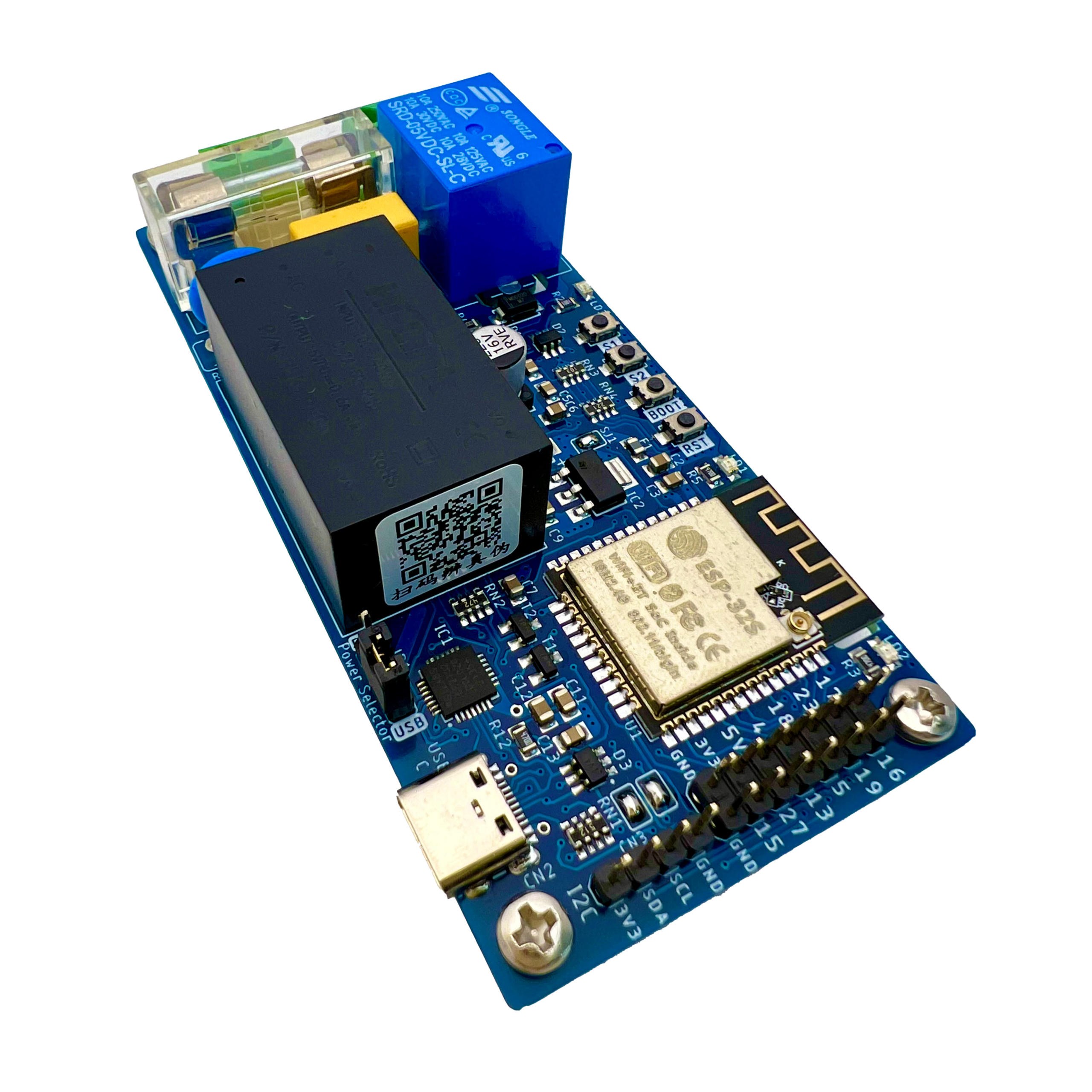

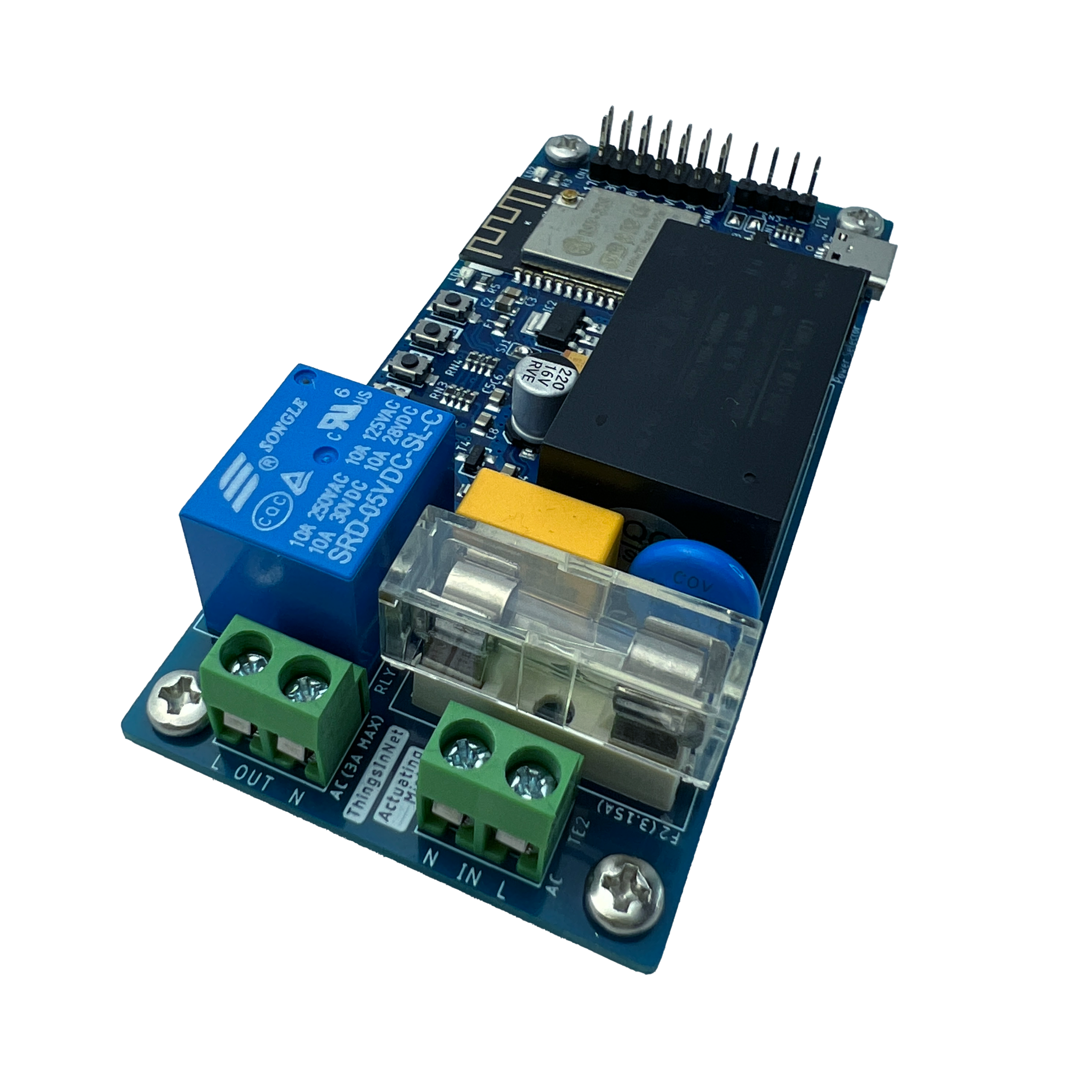

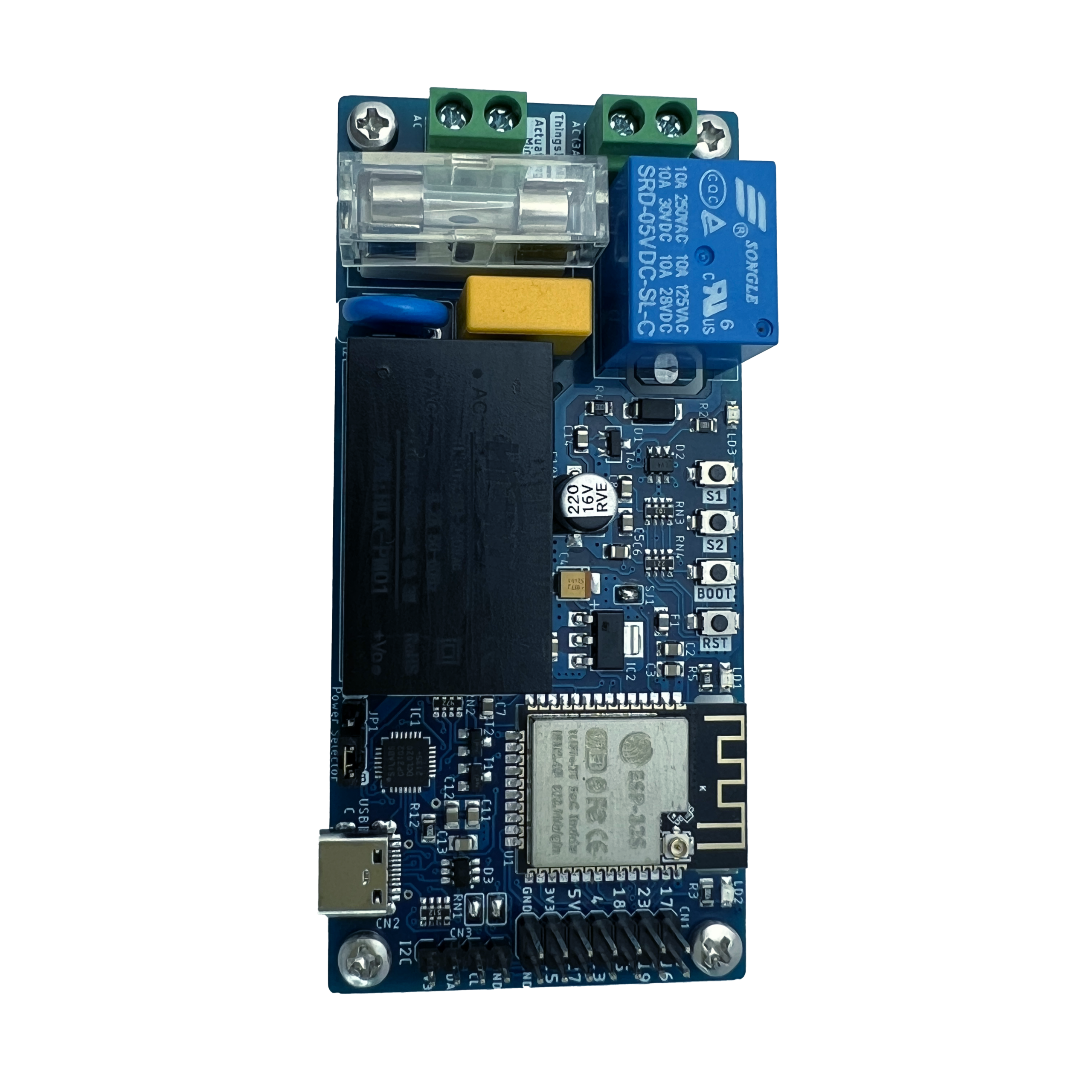

ESP32 Universal IoT Dev Kit – Actuating Mini

රු8,500.00

This unit is an ESP32-based dev kit/IoT unit mainly designed to connect actuators to IoT-based systems. It has an integrated relay switch to control a device and has a range of I/O pins for connecting sensors or actuators according to user requirements. Further it has two onboard push buttons for input. The unit can be programmed and employed using Arduino IDE, MicroPython and other Espressif chips compatible platforms such as ESP IDF. This module is ideal for researchers, engineers, and hobbyists in IoT and embedded system development. It is versatile enough to be used in R&D and perfect for 24/7 running applications and systems.

Out of stock

SKU GS3006 Categories ,

Out of stock

Description

Available Options Product Specifications Applications of the Board
  • MCU: ESP-32
  • Supports 802.11 b/g/n Wi-Fi connectivity with speeds up to 150 Mbps
  • Support for both Classic Bluetooth v4.2 and BLE specifications
  • One integrated relay switch to control a device
  • Input: 2×Pushbuttons
  • 10×GPIO pins (Follow original ESP32 functions)
  • Power LED
  • 1×3.3V I2C port
  • Voltage output pins: 1×3.3V/100mA, 1×5V/100mA
  • USB Type-C port
  • USB-to-UART Bridge

Download the User manual
  • Name: Universal IoT Dev Kit for Actuating – Mini
  • MPN: GS3 ESP-32 IoT Unit for Actuating – Mini
  • Marketing Status: Mass Production
  • Temp: -40 ~ 85 (℃)
  • Flash: 4 MB
  • PSRAM: 520 KB
  • Size: 96 x 46 mm
  • Antenna: PCB
  • Interfaces: I/O, I2C, USB
  • Smart farming
  • Smart cities
  • Weather stations
  • Environmental monitoring systems
  • Autonomous robots
  • Security systems
  • Research
  • Teaching and learning

Additional Information

Weight 0.4 kg
Dimensions 14 × 10 × 3 cm
Sensors

With Sensors, Without Sensors
