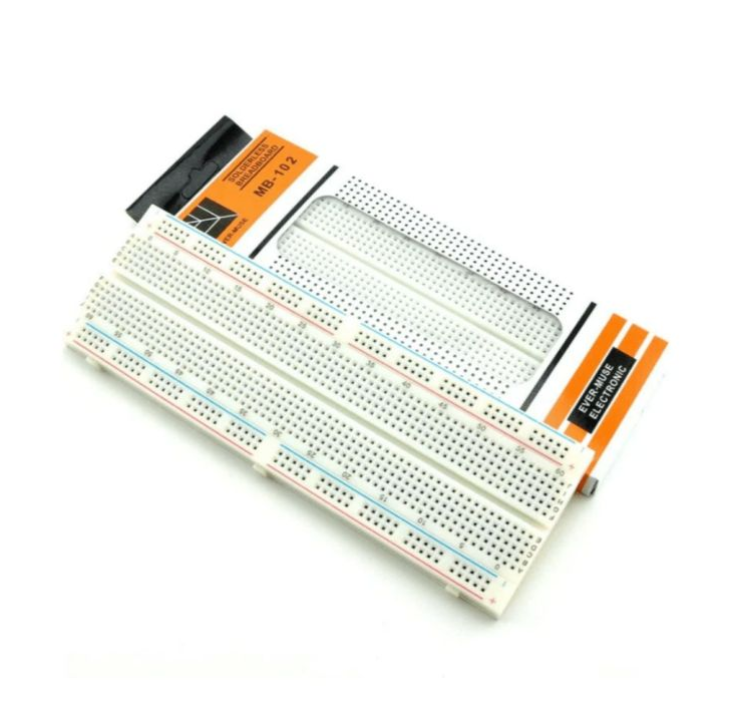

Bring your electronic designs to life without picking up a soldering iron! This 830 tie-point solderless breadboard is the ultimate canvas for circuit prototyping, allowing you to plug in components, swap wires, and modify layouts in seconds.

Featuring a standard full-size layout, it includes a massive 630-point central terminal area paired with 200 integrated power distribution points split into four independent rails (marked with clean red and blue lines). The board is constructed from rugged ABS plastic and uses durable internal phosphor bronze nickel-plated spring clips that securely grip anything from 21 to 26 AWG wire—ensuring solid electrical connections even after hundreds of insertions.

Need more space? The interlocking edge tabs allow you to snap multiple boards together side-by-side or end-to-end to accommodate massive, complex projects.

Key Features

• Zero Soldering Required: Completely reusable design saves time, money, and component damage during the design phase.

• Standardized Layout: Features clear alphanumeric grid markings (columns A-J, rows 1-63) for mistake-free component placement.

• Dual Power Rails: Four independent power lines span the length of the board to make distributing VCC and GND to your components incredibly simple.

• Peel-and-Stick Backing: Includes a double-sided adhesive foam tape backing to permanently mount the board to a project chassis, robot base, or testing rig.

Technical Specifications
